Successful solar integration requires matching panel mounting to your roof’s structural capacity and electrical service. Most installations fail when structural loads aren’t properly calculated upfront.
Most homeowners assume integrating solar panels means simply bolting modules to their roof and connecting wires. This oversimplified approach leads to water damage, structural issues, and electrical problems that can cost thousands to repair. The reality is that proper solar integration requires coordinating structural engineering, electrical capacity, and weatherproofing systems to create a unified roof assembly that performs reliably for 25+ years.
This guide walks you through the complete integration process, from initial structural assessment through final utility interconnection. You’ll understand how to evaluate your roof’s capacity for additional loads, properly flash and seal mounting penetrations, and ensure your electrical service can handle the new solar input. By following these steps, you’ll achieve a watertight, code-compliant installation that maximizes energy production while preserving your roof’s integrity across Denver’s challenging weather conditions.
Step 1: Assess Your Roof’s Structural and Electrical Readiness
Before any panels touch your roof, you need to verify that your structure can handle the additional load and your electrical system can accommodate the new power source. Solar panels add 3-5 pounds per square foot of dead load, plus wind uplift forces that can exceed 150 mph in Colorado’s Front Range weather patterns. A professional roof inspection reveals whether your rafters, decking, and overall structure meet current building codes for the combined loads. This assessment also identifies any existing damage that must be repaired before installation begins.
Electrical evaluation focuses on your main panel’s available capacity and the condition of your service entrance. Most homes need 20-30 amps of additional capacity for a typical 6-8 kW residential system, and older panels often lack the space or amperage for proper interconnection. Grid integration requirements mandate specific disconnect locations, grounding methods, and rapid shutdown compliance that affect both your roof layout and electrical planning. Skipping this upfront analysis leads to costly mid-project discoveries when you realize your 100-amp service can’t handle the solar addition or your 1980s roof framing needs reinforcement.
Step 2: Design the Mounting System and Penetration Layout
The mounting system design determines both your installation’s structural integrity and long-term weatherproofing performance. Poor mounting layouts create stress concentrations that can crack rafters or cause water infiltration at penetration points. Your design must account for ASCE 7 wind and snow loads specific to your elevation and exposure, while positioning attachments to hit solid framing members rather than just roof sheathing.
Penetration spacing and flashing details vary significantly between roof types, with asphalt shingles, tile, and metal requiring different approaches to maintain watertight seals. The layout also affects electrical conduit routing and compliance with NEC 690.12 rapid shutdown requirements, which mandate specific spacing between modules and roof edges. Most integration failures stem from inadequate penetration sealing or attachment points that miss structural members entirely.
Here’s a comparison of mounting options for different roof types common in the Denver area:
| Roof Type | Best Mounting Method | Typical Spacing | Special Considerations |
|---|---|---|---|
| Asphalt Shingle | Flashed standoffs with lag bolts | 4 feet on center | Seal under shingle tabs, use butyl gaskets |
| Concrete Tile | Tile replacement hooks | Every tile course | Match tile profile, use stainless hardware |
| Metal Standing Seam | Non-penetrating clamps | Seam spacing | No roof penetrations, clamp to raised seams |
| Flat/Low Slope | Ballasted or mechanically attached | Per wind calc | Consider drainage and access walkways |
Design Essentials
- Structural Mapping: Use a stud finder or probe to locate and mark all rafter centerlines, ensuring each mounting point hits solid wood framing rather than just sheathing for proper load transfer.
- Load Calculations: Calculate combined dead, live, wind, and snow loads per ASCE 7 standards for your specific elevation and exposure category, typically requiring 40-60 psf total capacity in the Denver metro area.
- Flashing Strategy: Select mounting hardware with integrated flashing systems rated for your roof type, with stainless steel fasteners and EPDM gaskets that maintain seals through thermal cycling.
- Setback Requirements: Maintain 3-foot setbacks from roof edges and ridges for fire department access, while ensuring adequate spacing for rapid shutdown compliance and maintenance access.
A well-designed mounting layout balances structural requirements with aesthetic considerations and code compliance. Your penetration pattern should create clean sight lines while hitting solid framing at every attachment point. This foundation work determines whether your installation will perform reliably through decades of Colorado weather extremes, making careful planning essential before any roof work begins.

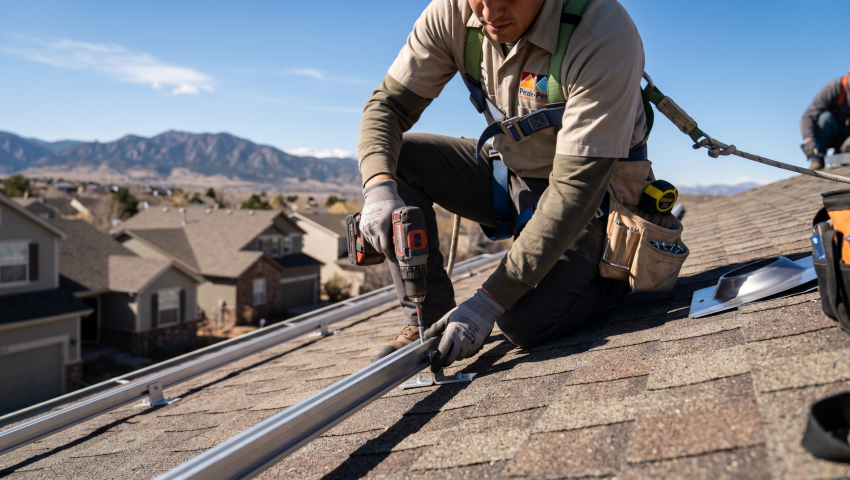

Step 3: Install Mounting Hardware and Establish Weatherproof Seals
Mounting hardware installation requires precision drilling and sealing techniques that prevent water intrusion while creating secure attachment points. Each penetration becomes a potential leak source, so proper flashing and gasket installation is critical for long-term roof integrity. The sequence matters: you must install base flashing, position standoffs, apply sealants, and integrate with existing roofing materials in the correct order to create overlapping water barriers.
Weather conditions significantly impact installation success, with temperature affecting sealant adhesion and wind making precise positioning difficult. Ideally, install hardware during dry conditions between 45-85°F when sealants cure properly and materials remain workable. Renewable energy integration research shows that installation quality directly correlates with long-term system reliability, making careful attention to sealing details essential for preventing costly repairs down the road.
Installation Steps
- Pilot Hole Drilling: Use a 1/8-inch bit to create pilot holes at marked rafter locations, checking for solid wood contact and adjusting position if you hit a void or miss the framing member.
- Flashing Integration: Install base flashing that extends 4 inches up-slope and 2 inches down-slope from the penetration, integrating with existing shingle courses or roofing membrane for proper water shedding.
- Hardware Attachment: Drive lag bolts or structural screws to manufacturer specifications, typically 2.5 inches into solid wood, using a torque wrench to achieve proper clamping force without over-tightening.
- Sealant Application: Apply polyurethane or silicone sealant around all penetrations and under flashing edges, creating continuous barriers that accommodate thermal movement without cracking.
- Final Integration: Install top flashing or shingle integration pieces that direct water over and around the mounting hardware, ensuring no exposed fasteners or gaps remain in the weather barrier.
Proper mounting hardware installation creates the foundation for both structural integrity and weatherproofing performance. Each penetration should be watertight and capable of transferring loads safely to the building structure. Take time to inspect each attachment point and seal before proceeding to panel installation, as correcting problems becomes much more difficult once modules are in place.
Step 4: Connect Electrical Systems and Complete Grid Interconnection
Electrical integration transforms your roof-mounted solar array into a functional power generation system that safely feeds electricity into your home and the utility grid. This process involves DC wiring between modules, inverter installation and AC connections, plus safety disconnects and monitoring systems required by NEC Article 690. The electrical work must comply with rapid shutdown requirements that automatically reduce DC voltage to safe levels when the system shuts down, protecting emergency responders.
Grid interconnection requires coordination with your utility company and local building department to ensure proper metering, disconnect placement, and protection systems. Solar contractors must install visible, lockable AC disconnects within sight of the meter, plus any additional safety equipment specified by Xcel Energy or your local utility. The interconnection process typically takes 2-4 weeks after installation completion, during which your system remains offline pending utility approval and net metering activation.
Connection Process
- DC Wiring Installation: Run MC4-compatible DC wiring between modules using proper cable management and UV-resistant conduit, maintaining proper polarity and creating series strings that match inverter input specifications.
- Inverter Mounting: Install string inverters in shaded, well-ventilated locations or attach microinverters directly to mounting rails, ensuring adequate clearances for heat dissipation and maintenance access.
- AC Disconnect Installation: Mount a visible, lockable AC disconnect switch within 10 feet of the utility meter and within sight of the main electrical panel, using NEMA 3R or 4X enclosures rated for outdoor use.
- Utility Interconnection: Submit interconnection applications with single-line diagrams and equipment specifications to your utility company, coordinating inspection schedules and net metering activation with local authorities.
Electrical integration represents the final step in transforming your roof into an active power generation asset. Grid integration standards ensure your system operates safely and efficiently within the broader electrical infrastructure. Once utility interconnection is complete and net metering is activated, your integrated solar system begins offsetting electricity costs while maintaining the structural and aesthetic integrity of your roof system.
Achieving Long-Term Solar Performance
Successfully integrating solar panels with your existing roof creates a unified system that generates clean energy while maintaining structural integrity and weather protection. Your properly installed system should provide 25+ years of reliable service with minimal maintenance, offsetting a significant portion of your electricity costs while preserving your roof’s watertight performance. The key to long-term success lies in the careful structural assessment, weatherproof mounting, and compliant electrical integration covered in this guide.
Moving forward, monitor your system’s performance through inverter displays or monitoring apps to ensure optimal energy production. Schedule annual roof inspections to check mounting hardware, seals, and overall roof condition, addressing any issues before they compromise either your solar investment or building envelope. With proper integration and maintenance, your solar-equipped roof will continue delivering both energy savings and weather protection throughout its designed lifespan.
